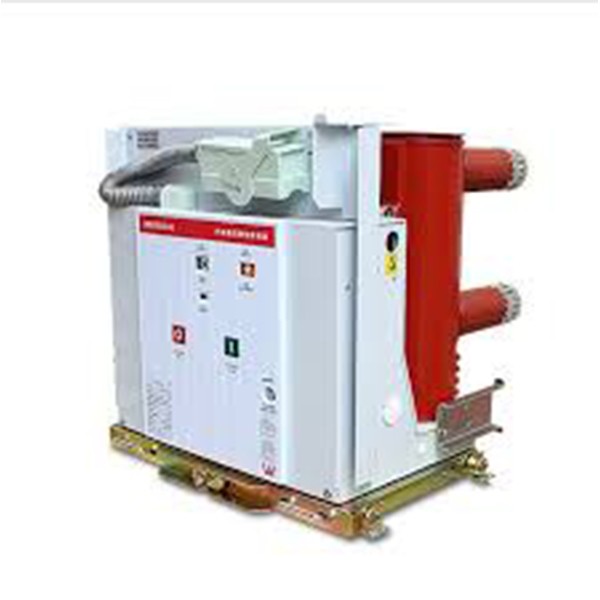

The ABB VD4 12.12.25 Vacuum Circuit Breaker (VCB) is a high-capacity, medium-voltage indoor breaker designed for 11kV systems, with a rated current of 1250A and a short-circuit breaking capacity of 25kA. Built with ABB's proven vacuum interrupter technology, the VD4 series delivers reliable arc suppression, long electrical endurance, and superior operational safety.
This specific model includes:
MO1 – Spring-operated Mechanical Operating Mechanism
MC – Mechanical Interlock for safety during racking and operation
MS – Mechanical Shutter to prevent accidental contact with live parts
BB1-2 – Busbar and Interlock Modules for secure panel integration
The VD4 12.12.25 is ideal for utilities, industrial distribution, and commercial infrastructures where high fault-level protection and long-term reliability are essential.
⚡ Rated Voltage: 11kV
? Rated Current: 1250A
? Breaking Capacity: 25kA (short-circuit) – ensures high-level protection
? Vacuum Interrupter Technology: Provides arc-free interruption and extended breaker life
?️ MO1 Operating Mechanism: Spring-charged; suitable for manual and motorized operation
? MC Interlock System: Prevents unsafe operations (e.g., racking under load)
?️ MS Shutter: Automatically covers live terminals when breaker is disconnected
? BB1-2 Busbar & Interlock Modules: For safe and secure integration into switchgear panels
? Low Maintenance Design: No arc chutes or frequent part replacements needed
? Standard Compliance: IEC 62271-100
? Application Areas: Ideal for medium-voltage switchgear in substations, heavy industries, and infrastructure systems requiring compact, high-capacity breakers
