TD2881 Digital Terry Warp Knitting Machine
Inhouse product
Product details
CHARACTERISTIC
This equipment adopts a crankshaft connecting rod mechanism and is equipped with a forced oil pressure lubrication system and an oil temperature control system. Independent winding and yarn breaking automatic stop device with bristle brushing device (optional), electronic let-off, and electronic lateral movement (optional) to ensure high-speed operation and convenient operation of the machine.
APPLICATION
To produce terry fabrics such as towels, bed blanket, bamboo fiber dish towel etc.

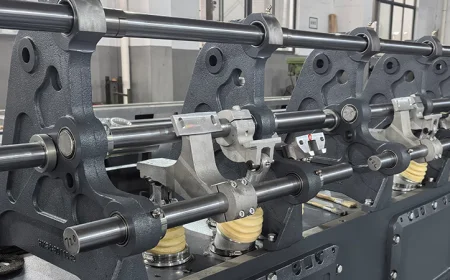

Stable Production Efficiency
The automatic yarn break detection device ensures the machine stops immediately when a yarn breaks, preventing production interruptions and improving production continuity.

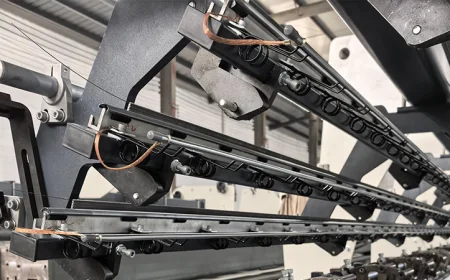

High-Precision Operation
The electronic side-shifting function provides higher precision and flexibility, allowing the machine to adapt to more complex production requirements and ensuring product quality.

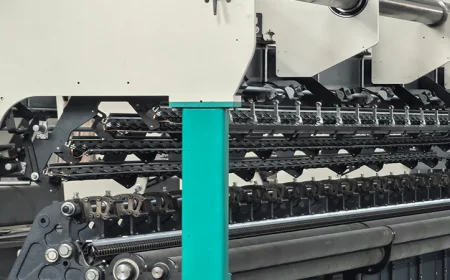

Reliable Lubrication System
Equipped with a forced oil pressure lubrication system and oil temperature control system, effectively reducing machine wear and extending equipment lifespan.
Main technical parameters
Needle type | Latch needle |
Gauge | E16 E18 E22 |
Working width | 100 inches |
Guide Bar No. | 5 |
Double pile height | 50-250mm |
Main drive | Oil-immersed cam |
Max speed | 500 rpm |
Pattern drive | Electronic Control |
Yarn let-off device | Two roller roller active let-off(optional:electronic let-off)
|
Fabric take-up | Change gear traction box(optional:electronic traction)
|
Batching device | Independent batching device |
Main motor power | 5kw(90"、100"、110")7.5kw(138") |
