TD385A Digital High Speed Double Needle Bar Raschel Machine
Inhouse product
Product details
CHARACTERISTIC
All oil-immersed cam mechanism, to reduce wear and the cam is durable. Opt to use electronic yarn let-off, electronic take-up, so that the yarn let-off is more stable.
APPLICATION
After cutting and finishing the fabric can be formed medium plush which height is 5-25mm. Its plush is fullness, soft, wool yarn into a circle and not easily detached from the base fabric. The machine is widely used in plush toys, furcoat, plush carpets, blankets and other products, such as flano, coral velvet, Kirin cashmere, circle fleece, PV velvet, simulation fur.

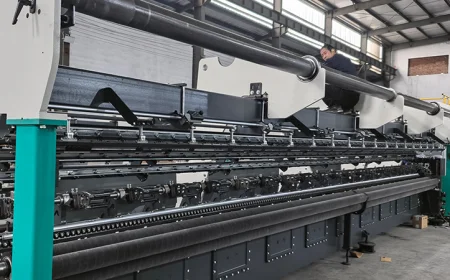

Strong Stability
Due to the fixed needle plate, the fabric is held tightly and stably, which helps maintain the long-term stable operation of the machine and reduces the failure rate.

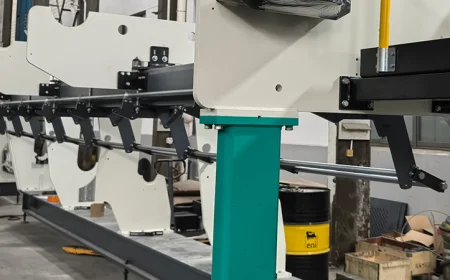

Easy Operation & Maintenance
The swingable design of the shaping plate bed facilitates the replacement of needle tongues, simplifying the operation and maintenance process and improving work efficiency.

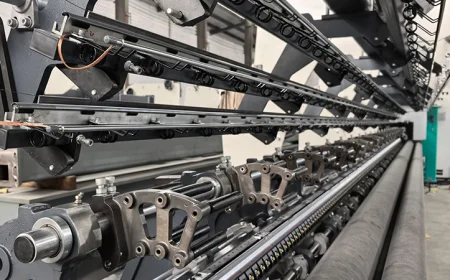

High Degree of Automation
Combined with electronic weft insertion and laser yarn break automatic stop system, the machine boasts a higher level of automation, ensuring safety and production continuity during high-speed operation.
Main technical parameters
Needle type | Latch needle |
Gauge | E16E18 E22 |
Working width | 90”100”110"138" |
Guide Bar No. | 5 |
Double pile height | 8-50mm |
Main drive | Oil-immersed cam |
Max speed | 850 rpm |
Pattern drive | GB1,GB2,GB4,GB5 |
Yam let-off device | Two roller roller active let-off(optional:electronic let-off) |
Fabric take-up | Change gear traction box(optional:electronic traction) |
Batching device | Independent batching device |
Main motor power | 5kw(90°,100°,110")7.5kw(138") |
